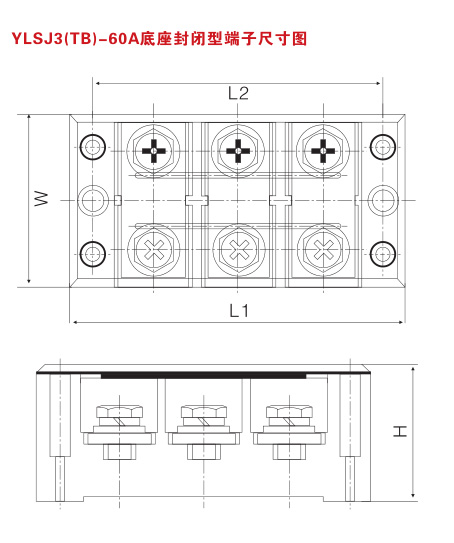

| 型号规格 | 额定数据 | 极数（P ) | 压线螺钉（mm ) | 外形尺寸 | |||||
| 电压（V ) | 电流（A ) | 导线截面m㎡ | L1 | L2 | W | H | |||
| YLSJ3 TB-603 | 600V | 60 | 16 | 3 | M6 | 75.12 | 64±0.1 | 38.1 | 30.7 |
| YLSJ3 TB-604 | 600V | 60 | 16 | 4 | M6 | 92.74 | 81±0.12 | 38.1 | 30.7 |
| YLSJ3 TB-606 | 600V | 60 | 16 | 6 | M6 | 129.14 | 118±0.14 | 38.1 | 30.7 |
| YLSJ3 TB-6012 | 600V | 60 | 16 | 12 | M6 | 234.2 | 222.4±0.2 | 38.1 | 30.7 |
